Corrugated steel pipes (CSP) are a highly versatile and durable solution for a wide range of applications, particularly in drainage and stormwater management. These pipes are known for their strength, longevity, and ability to withstand various environmental conditions. CSPs are available in multiple coatings and configurations to suit specific project needs.

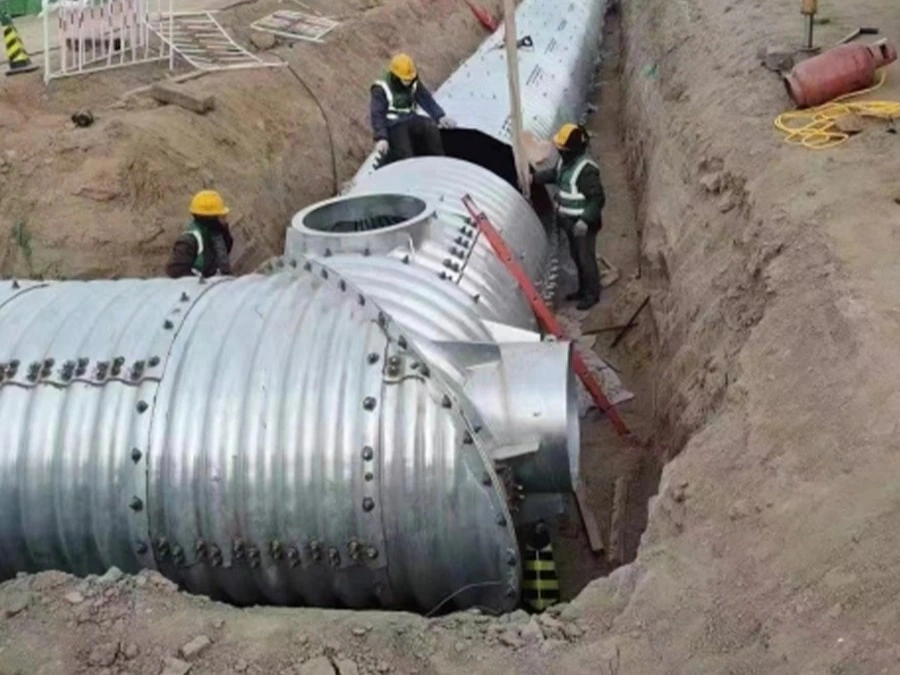

The diameter of 2.7 meters round assembly tunnel, the total length of 3200 meters, the total cost of 4 million German Mark (RMB 40 million yuan).
The main structure is adopted corrugated steel pipe, and the galvanized circular corrugated steel pipe with diameter 80cm is adopted in the feeding port.
It was built in 1992 and completed for 1.5 years. It contains pipelines for water, gas, electricity, communication and heating.
| Corrugation | 68×13mm,100×20mm,125×25mm,150×50mm,200×55mm,230×64mm,300×110mm,380×140mm,400×150mm |
| Diameter or span | 0.4m-24m |
| Thickness | 1.6mm-12mm |
| Zinc coating | 84μm each side |
| Steel standards: | ASTM A36,EN 10111,ISO 5951 |
| Application | .Multiplate structures pipe can be used as: - culverts - bridges - tunnels - under passed - ecological crossing - pedestrian tunnel - hangers - shelter - warehouse - stores for ammunition - belt conveyor protection - ventilating duct - and for reinforcement and reconstruction of existing structures as well. Metal corrugated pipe can be used for every class of service load provided that appropriate back filling is performed |
