Corrugated steel pipes (CSP) are a highly versatile and durable solution for a wide range of applications, particularly in drainage and stormwater management. These pipes are known for their strength, longevity, and ability to withstand various environmental conditions. CSPs are available in multiple coatings and configurations to suit specific project needs.

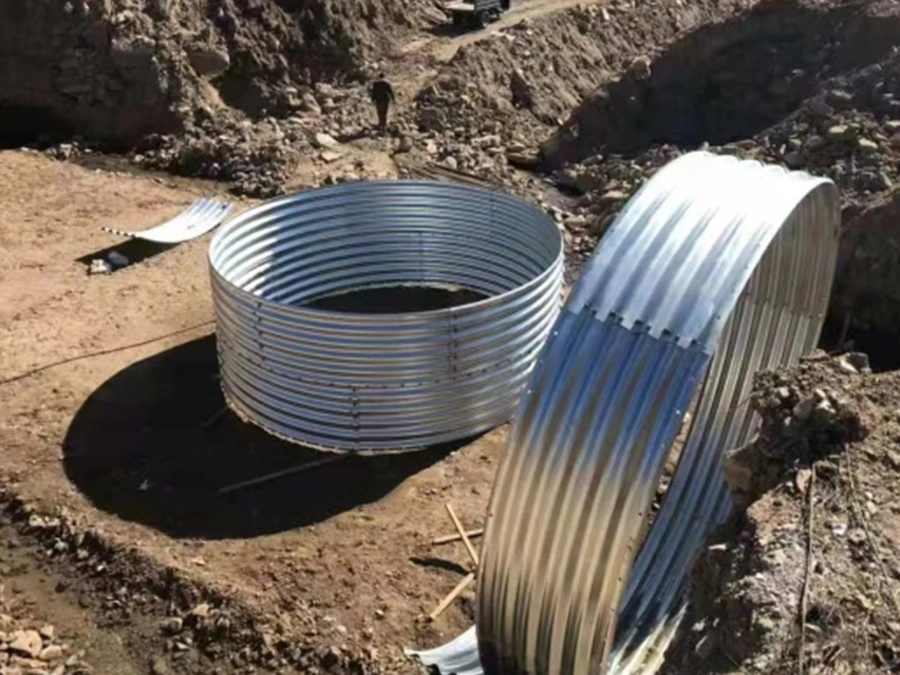

Corrugated steel pipe also called corrugated pipe culvert or corrugated metal pipe refers to the screw corrugated pipe buried in the road or under the railway culvert. It is circular corrugated pipe that composed of corrugated metal coils or semi-circular corrugated steel sheet. Its application has been extended to road culverts, underpasses, bridges, water seepage wells, temporary pavement, old bridges and culverts repairing, municipal drainage ditch, municipal utility tunnel, mine conveying pipes and other fields. According to the applications of corrugated steel pipe at home and abroad, it has a good applicable capacity and a promising future due to its features.
| Corrugation | 68×13mm,100×20mm,125×25mm,150×50mm,200×55mm,230×64mm,300×110mm,380×140mm,400×150mm |
| Diameter or span | 0.4m-24m |
| Thickness | 1.6mm-12mm |
| Zinc coating | 84μm each side |
| Steel standards: | ASTM A36,EN 10111,ISO 5951 |
| Application | .Multiplate structures pipe can be used as: - culverts - bridges - tunnels - under passed - ecological crossing - pedestrian tunnel - hangers - shelter - warehouse - stores for ammunition - belt conveyor protection - ventilating duct - and for reinforcement and reconstruction of existing structures as well. Metal corrugated pipe can be used for every class of service load provided that appropriate back filling is performed |
