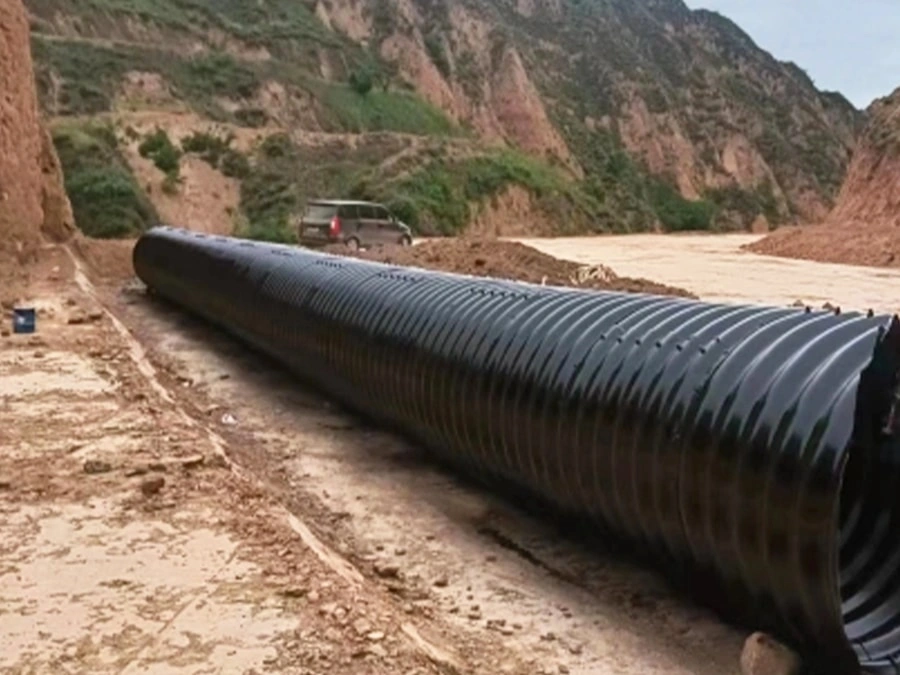

Steel corrugated pipe culvert in China from the experimental study of early 1998 to promote the use of so far, after more than 10 years of time, the application of different grade highway construction in more than 20 provinces, autonomous regions, municipalities, This structure with its excellent performance won the favor of road builders, closed section form has been successfully applied to 12 meters, the application of non closed section form to span 7.4 meters.The top tube filling height from 0.6m has been successfully applied to 56m.
| Corrugation | 68×13mm,100×20mm,125×25mm,150×50mm,200×55mm,230×64mm,300×110mm,380×140mm,400×150mm |
| Diameter or span | 0.4m-24m |
| Thickness | 1.6mm-12mm |
| Zinc coating | 84μm each side |
| Steel standards: | ASTM A36,EN 10111,ISO 5951 |
| Application | .Multiplate structures pipe can be used as: - culverts - bridges - tunnels - under passed - ecological crossing - pedestrian tunnel - hangers - shelter - warehouse - stores for ammunition - belt conveyor protection - ventilating duct - and for reinforcement and reconstruction of existing structures as well. Metal corrugated pipe can be used for every class of service load provided that appropriate back filling is performed |
