Corrugated steel pipes (CSP) are a highly versatile and durable solution for a wide range of applications, particularly in drainage and stormwater management. These pipes are known for their strength, longevity, and ability to withstand various environmental conditions. CSPs are available in multiple coatings and configurations to suit specific project needs.

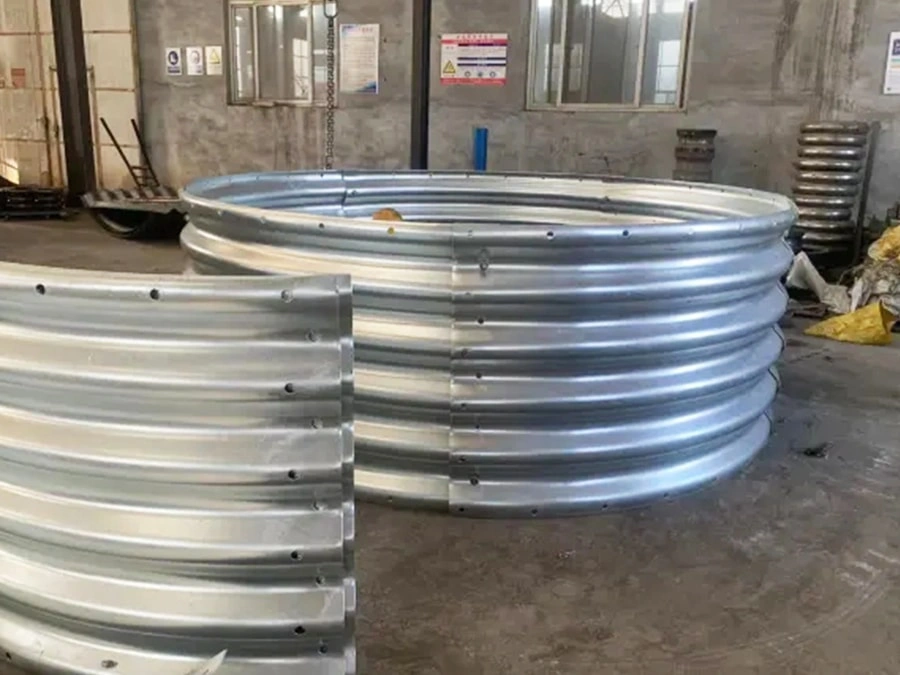

Bridges and large culverts can be relined by erecting our plate structures inside existing structures. Or, the new plate structure can be erected outside and threaded into existing openings. Our Plate Structures, including Two-Flange Liner Plate, are delivered to the job site unassembled. The plates and ribs are easily bolted together to form various shapes: round, vertical and horizontal ellipse, pipe-arch, underpass and arch.
| Corrugation | 68×13mm,100×20mm,125×25mm,150×50mm,200×55mm,230×64mm,300×110mm,380×140mm,400×150mm |
| Diameter or span | 0.4m-24m |
| Thickness | 1.6mm-12mm |
| Zinc coating | 84μm each side |
| Steel standards: | ASTM A36,EN 10111,ISO 5951 |
| Application | .Multiplate structures pipe can be used as: - culverts - bridges - tunnels - under passed - ecological crossing - pedestrian tunnel - hangers - shelter - warehouse - stores for ammunition - belt conveyor protection - ventilating duct - and for reinforcement and reconstruction of existing structures as well. Metal corrugated pipe can be used for every class of service load provided that appropriate back filling is performed |
