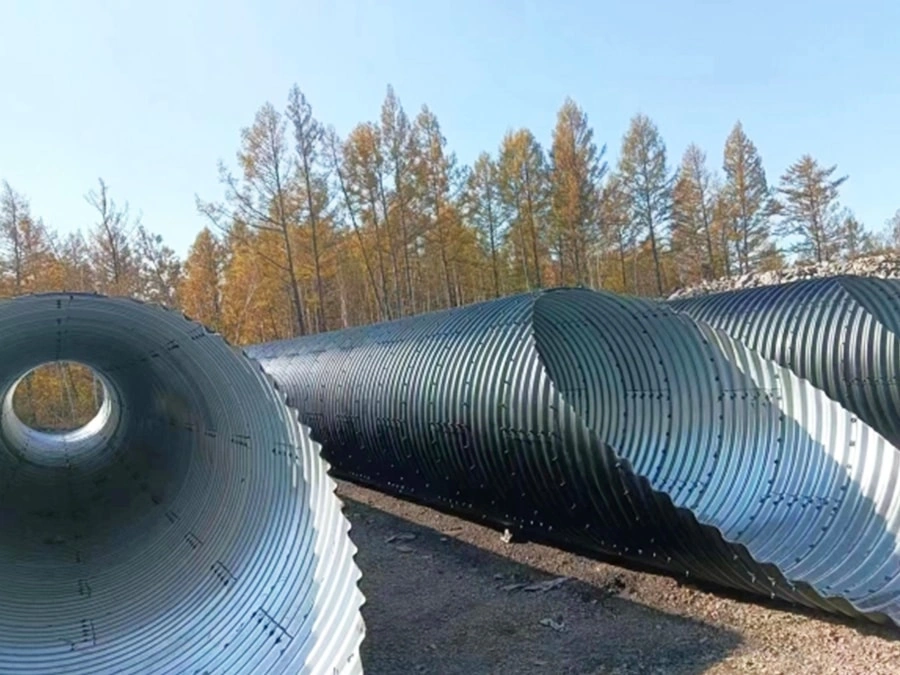

Corrugated steel pipes (CSP) are a highly versatile and durable solution for a wide range of applications, particularly in drainage and stormwater management. These pipes are known for their strength, longevity, and ability to withstand various environmental conditions. CSPs are available in multiple coatings and configurations to suit specific project needs.
Galvanized characteristics, after galvaization, the steel characteristics is below:
Good anti-corrosion, there is zinc protection coating on the surface of steel.
Anti corrosion action, the zinc has lower potential than steel, even zinc coarting broken, it still can protect the steel surfacebasic plate no change, the basic plate with no change on the mechanism.
Good adhision, beween the zinc and steel, it can be a alloy steel, then adhisive on the basic plate tightly, can't be broken by normal crashdurability time calculation.
| Corrugation | 68×13mm,100×20mm,125×25mm,150×50mm,200×55mm,230×64mm,300×110mm,380×140mm,400×150mm |
| Diameter or span | 0.4m-24m |
| Thickness | 1.6mm-12mm |
| Zinc coating | 84μm each side |
| Steel standards: | ASTM A36,EN 10111,ISO 5951 |
| Application | .Multiplate structures pipe can be used as: - culverts - bridges - tunnels - under passed - ecological crossing - pedestrian tunnel - hangers - shelter - warehouse - stores for ammunition - belt conveyor protection - ventilating duct - and for reinforcement and reconstruction of existing structures as well. Metal corrugated pipe can be used for every class of service load provided that appropriate back filling is performed |
